WEIQUE WIND-ENERGY PRODUCT LINE / Clamp Systems
Wind-turbine pipe clamps and cable cleats organized around real installation zones, environmental loads and project documentation.

Wind Turbine Clamp & Cable Cleat Systems

Eight product families selected by line type, load, environment and installation geometry.

REAL PRODUCT PHOTOS
Market research from industrial sourcing platforms shows buyers compare real clamp bodies, bracket finishes and kit completeness before reading the data table. These photos bring that product context higher on the page.
SS316 trefoil cable cleat for three single-core offshore wind turbine power cables
TC-316 · IEC 61914SS316 trefoil cable cleatMarine stainless trefoil restraint for offshore tower and transition-piece power cable routes.
Aluminum trefoil cable cleat for three single-core wind turbine power cables
TC-AL · IEC 61914Aluminum trefoil cable cleatLightweight trefoil cable support for tower and onshore wind cable runs.
Marine grade DIN 3015 hydraulic pipe clamp kit for wind turbine service
M-400 · DIN 3015Marine hydraulic pipe clamp kitComplete pipe clamp kit context for nacelle, tower and offshore hydraulic lines.
DIN 3015 heavy vibration pipe clamp with green PA66-GF body and steel plates
HS · Real SampleHeavy vibration pipe clampUser-supplied real product photo for heavy hydraulic and cooling line support.
Black PA66-GF DIN 3015 heavy series pipe clamp with zinc-nickel steel bracket
HS-100 · HeavyBlack heavy series pipe clampHeavy PA66-GF body with steel cover plate for nacelle and tower support discussions.
Green DIN 3015 heavy pipe clamp with zinc coated cover plate and bolt
HS · CoatedGreen heavy pipe clampCoating, fastener and bracket finish details for wind turbine RFQ review.
Green thermoplastic DIN 3015 heavy pipe clamp front view
HS · PlasticHeavy thermoplastic front viewFront view showing insert opening and cover-plate geometry.
Green thermoplastic heavy pipe clamp angled view with bracket details
HS · 45 degreeHeavy thermoplastic angle viewAngled view for checking body depth and bracket bolt pattern.
Green heavy plastic wind turbine pipe clamp three quarter view
HS · 3/4 viewHeavy thermoplastic clamp detailThree-quarter view for bracket and insert-depth discussion.
Twin series DIN 3015 side-by-side pipe clamp for wind turbine hydraulic lines
TS-200 · TwinTwin hydraulic line clampSide-by-side clamp pair for pitch, yaw and return-line routing.
Light series PA66 nylon pipe clamp front view for wind turbine control lines
LS-050 · LightLight series front viewCompact clamp for control air, instrumentation and small cable routes.
Light series nylon pipe clamp side view showing low profile body depth
LS · SideLight series side viewLow-profile side geometry for tight cabinet and tower spaces.
Light series nylon pipe clamp angled view showing bolt hole pattern
LS · AngleLight series angled viewAngled view for bolt pattern and liner detail checks.
Orientable swivel wind turbine clamp pair with zinc-nickel bracket
EQ · PairOrientable clamp pairAdjustable orientation for custom cable and hose routing geometry.
Orientable swivel wind turbine clamp angled view showing insert cavity
EQ · AngleOrientable angle viewSwivel mechanism and insert cavity view for engineered routes.
Orientable wind turbine pipe clamp front view with zinc-nickel bracket
EQ · FrontOrientable front viewFront view of custom orientation support and bracket finish.
PRODUCT FOCUS
For wind turbine projects, the most useful starting point is not a catalogue code alone. Match the product to the installation zone, corrosion class, short-circuit load and RFQ data available from the project team.
TC-316 · IEC 61914

SS316 Trefoil Cable Cleat

Marine stainless-steel trefoil restraint for offshore towers, transition pieces and exposed cable routes where salt corrosion and short-circuit withstand are the main design risks.

Zone · offshore tower / TP
Material · SS316 / 316L + A4 fasteners
RFQ data · cable OD, kA, spacing, environment
View product page →
TC-AL · IEC 61914

Aluminum Trefoil Cable Cleat

Lightweight trefoil cleat for tower and onshore cable routes where installation speed, reduced mass and corrosion resistance need to stay balanced.

Zone · tower / onshore route
Material · marine-grade aluminum + liner
RFQ data · cable OD, fixing pitch, fault current
View product page →
M-400 · DIN 3015

Marine Grade Hydraulic Pipe Clamp Kit

Complete DIN 3015 hydraulic-line kit for nacelle, tower and offshore service: clamp halves, baseplate, cover plate and A4 fasteners supplied as one documented set.

Zone · nacelle / TP / offshore hydraulics
Material · PA66-GF, 316L hardware, A4-80 bolts
RFQ data · pipe OD, pressure, coating, certificate
View product page →
Procurement paths
Price guideDIN 3015 pipe clamp price factorsMaterial, bore size, coating, hardware and certificate choices that change cost. Lead time / MOQSamples, MOQ and production lead timeWhat buyers should prepare before asking for wind turbine clamp samples. RFQ checklistNon-standard clamp RFQ dataPipe OD, loads, drawings, materials and acceptance documents. DocumentsWind turbine clamp documentation packageDrawings, certificates, coating reports and traceability records. Offshore cleatsSS316 trefoil cable cleat procurementIEC 61914, corrosion class, A4 fasteners and offshore RFQ data. Material choiceSS316 vs aluminum trefoil cleatsCompare corrosion, weight, cost and installation constraints. Cable cleat RFQTrefoil cable cleat specification checklistCable OD, fault current, spacing, mounting and documents.
WIND TURBINE CLAMP SOLUTIONS · SERIES & APPLICATION DATA
PRODUCT FAMILIES
8
SIZE STEPS
89
CAD AVAIL.
STEP · IGES
QMS
ISO 9001:2015
CODE FIG. SERIES · DESCRIPTION LINE / CABLE Ø MATERIAL RATING STANDARD DATA SHEET
HS-100

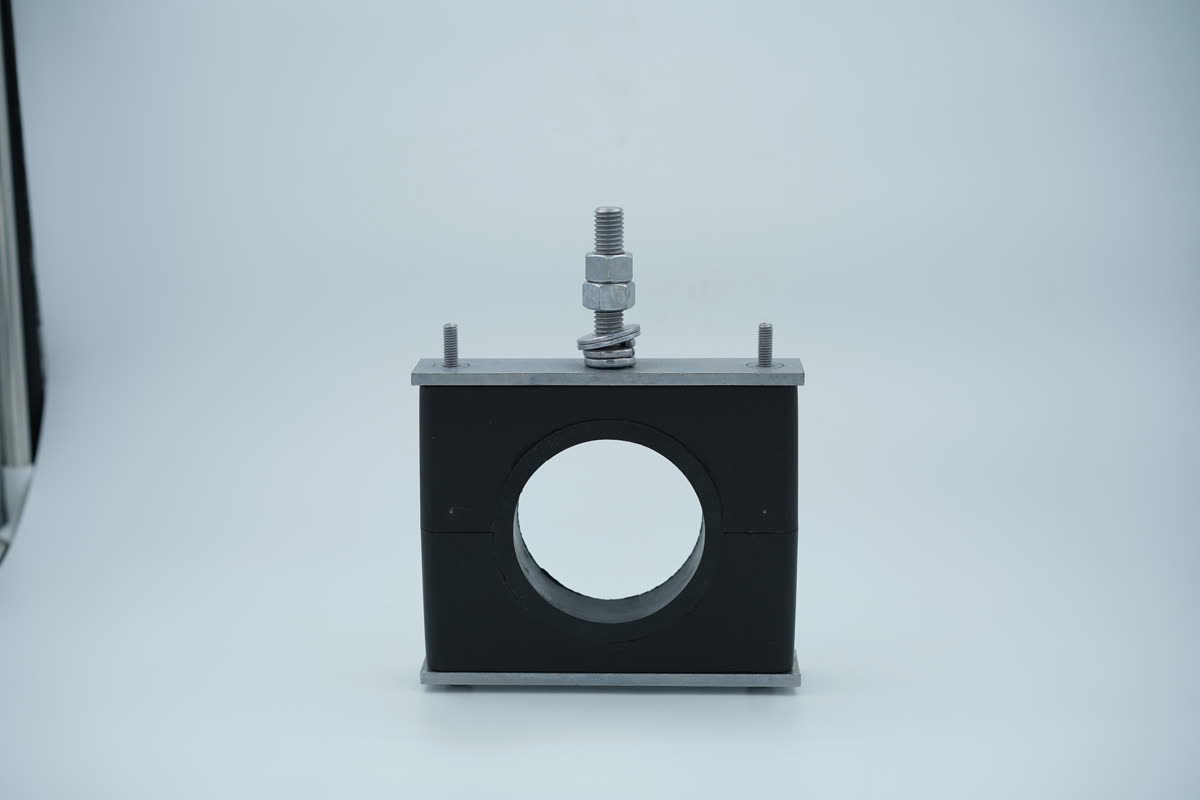

HS-100 heavy-series PA66-GF nylon wind turbine cable clamp with zinc-nickel bracket
 Heavy Series HS · DIN 3015-1Heavy-duty single-pipe clamp. Workhorse of nacelle cooling lines.DEFAULT FOR NACELLE COOLINGTechnical guide → Ø 21 – 273 mm20 dia. steps PA66-GFS355 baseplate 100BAR DIN 3015-1HEAVY View product
TS-200

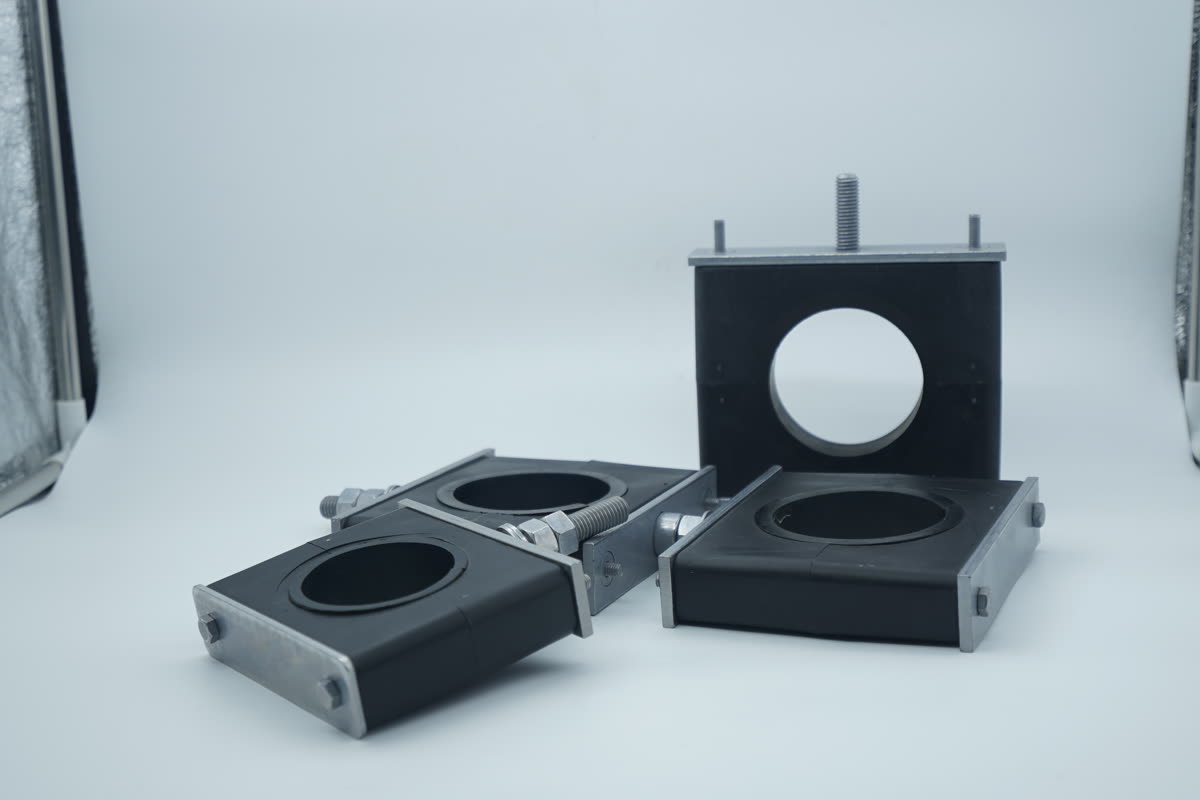

TS-200 twin-series side-by-side wind turbine pipe clamp for pitch and yaw hydraulic feed and return lines
 Twin Series TS · DIN 3015-2Side-by-side twin clamp. Pitch hydraulic feed + return on one mount.DEFAULT FOR PITCH/YAWTechnical guide → Ø 6 – 60 mm28 dia. steps PP · PA66-GFEPDM insert · 8.8 bolts 250BAR DIN 3015-2TWIN On request
SO-300
Insulated stand-off pipe clamp on a steel post and base plate for wind turbine cooling mains
 Stand-Off SO · DIN 3015-3Insulated stand-off clamp for high-temperature cooling mains.DEFAULT FOR TOWER HYDRAULICSTechnical guide → Ø 76 – 273 mm14 dia. steps PA66-GF + ceramicS355 stem · 8.8 bolts 160BAR DIN 3015-3STAND-OFF On request
TC-316
SS316 trefoil cable cleat for three single-core wind turbine power cables
 SS316 Trefoil Cable CleatThree-phase power cable restraint for offshore towers, transition pieces and exposed marine routes. Supplied with A4 fasteners and cable-protective liners.OFFSHORE · HIGH CORROSIONTechnical guide → Project cable ODtrefoil formation SS316 / 316LA4 fasteners · liner Short-circuitproject verified IEC 61914cable cleat View product
TC-AL
Aluminum trefoil cable cleat for three single-core wind turbine power cables
 Aluminum Trefoil Cable CleatLightweight three-phase cable restraint for tower and onshore routes where low mass, fast installation and corrosion resistance are priorities.TOWER · ONSHORE · LOW MASSTechnical guide → Project cable ODtrefoil formation Marine-grade Alstainless fasteners · liner Short-circuitproject verified IEC 61914cable cleat View product
M-400
Marine grade DIN 3015 heavy series hydraulic pipe clamp with PA66-GF body and zinc-plated cover plate
 Marine Grade DIN 3015 Hydraulic Pipe Clamp KitComplete offshore hydraulic-line kit with clamp halves, baseplate, cover plate and A4 fasteners for transition-piece and nacelle service.OFFSHORE HYDRAULICS · COMPLETE KITTechnical guide → Ø 33 – 219 mm11 dia. steps 316L hardwarePA66-GF body · A4-80 bolts 160BAR DNV ST-0126by design View product
LS-050

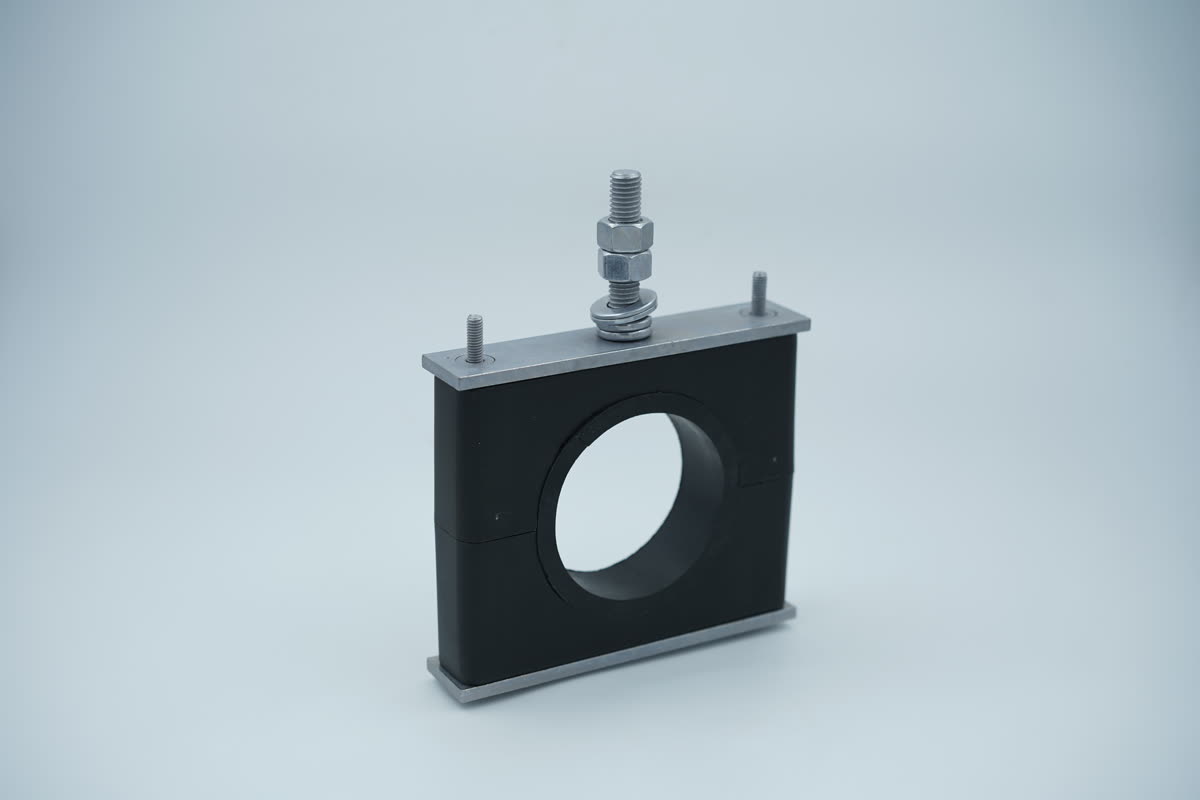

LS-050 light-series PA66 nylon wind turbine clamp with zinc-nickel bracket for control and signal cables
 Light Series LS · DIN 3015-1Light series for control-air and small instrumentation lines.CONTROL · INSTRUMENTTechnical guide → Ø 6 – 42 mm16 dia. steps PPNBR / EPDM · 8.8 bolts 40BAR DIN 3015-1LIGHT On request
EQ
Engineered EQCustom geometries — design, FEM, prototype, type-test in 6 weeks.CUSTOM · NON-STANDARDTechnical guide → By drawingany range By specFEM · Ansys —per spec Customper RFQ RFQ →
[a]Default mappings reflect typical OEM specifications; substitutions on request.
[b]DIN 3015 series use PA66-GF bodies with project-specific 316L or aluminium hardware; cable-cleat materials are selected separately.
[c]Full SKU index on request.
[d]CAD library: STEP / IGES / SolidWorks / Inventor — product-specific files available on request via engineering inquiry →
Selection support
Not sure which fixing system fits? Send the turbine zone, line or cable OD, load, temperature and exposure conditions. Engineering will return a solution and material recommendation.
Engineer response
within 48 h
